Bilcare
Lamiflex

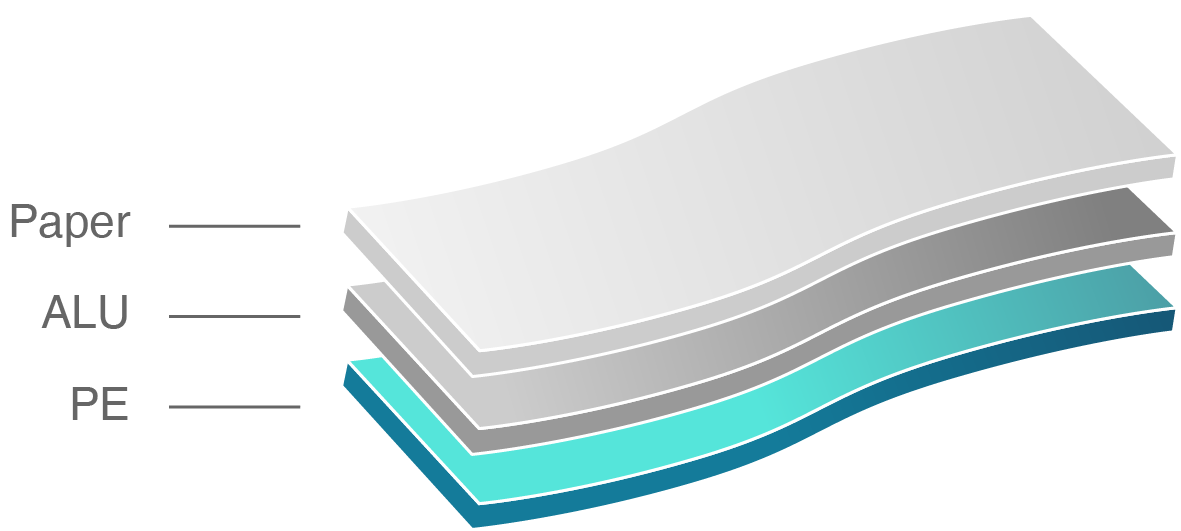

Paper / Foil / PE
Bilcare lamiflex RAL is specially developed paper based Laminate for pharmaceutical packaging application. This complex can also be available with printing and / or pouching option.
Applications
Suitable for pharmaceutical formulation like effervescent granules, Bulk Drugs, Antacid liquid, Sildenafil Citrate in gel form.
Salient Features
- This complex can also be available with printing and / or pouching option.
- Excellent print adherance.
- Available in both plain and printed form.
- Excellent heat resistance.
- Excellent machineability
- Lowest solvent retention.
- Non-Toxic
Technical Data Sheet
| Property | Test Method | Unit | Specifications |
|---|---|---|---|
| Paper GSM | DIN EN ISO 2286 | gm/m2 | 36.0 to 44.0 |
| Al Foil GSM | Standard | gm/m2 | 50.8 to 57.2 |
| PE GSM | DIN EN ISO 2286 | gm/m2 | 53.9 to 63.3 |
| Total Thickness | Standard | micron | 86.0 to 105.1 |
| Total GSM | Standard | gm/m2 | 101.9 to 124.6 |
| Peel Strength (Paper to Al Foil)(Al Foil to PE) | Standard | kg/15mm |
Fiber Peel 0.25 minimum |
Bilcare Lamiflex RAL Variants
| Paper / Foil / PE |
|---|
| 40 / 9 / 40 |
| 40 / 12 / 37.5 |
- Customized products and colours can be developed to suit the specific cases.
Innovation Possibilities
-
Printing
Additional Information
Printed and Non Printed
| Parameter | Test Method | Unit | Specification |
| Toxicity Test | Current Usp |
| Non Toxic |
| Average No. Of Joints Per Roll/Spools |
| Number | 2 max |
Slitted
| Inner Diameter of Core | 76mm/152mm |
| Slit Width tolerance | Upper limit +1 and lower Limit -1mm |
| Slit Roll Width | 50mm to 1190mm |
| Packing | Each Slitted Spool Wrapped in Black PE film |
| Labelling | Bar Coded labels containing the product details are fixed inside the core, on stretched wrapped film and finally on the carton .Other label indicating the coated surface is also affixed on the spool |
